DongYu provides a comprehensive portfolio of wall mounted EV chargers designed for diverse global markets, covering different power ratings, charging standards, configurations, and applications to help distributors, installers, and businesses source the right solution from one manufacturer.
AC wallboxes span 3.5kW to 22kW with adjustable 8A–32A current. A 7kW unit restores 40–50km of range per hour; 22kW reaches 120km. Wall-mounted DC chargers add 7kW to 40kW.
Every unit includes over-current, ground-fault, leakage, voltage, temperature, and surge protection, with North American models featuring CCID20 compliance, UL94-V0 housings, and integrated RCD/RCBO options.
Wallboxes are rated IP55, with IK08 impact resistance for public and depot duty. Enclosures use UV-stable PC and PA66 and are tested across −30°C to +55°C for year-round outdoor performance.
One platform supports Type 1 (SAE J1772), Type 2 (IEC 62196-2), and GB/T 20234 output, plus CCS1, CCS2, and CHAdeMO on DC models. Type 2 plugs are rated beyond 10,000 mating cycles.
Choose plug-and-charge, or specify RFID authentication, LCD display, Wi-Fi, Bluetooth, Ethernet, and 4G/LTE. Networked wallboxes support OCPP 1.6J, app control, scheduled off-peak charging, load balancing, and remote firmware updates.
Compact housings mount on any structurally sound wall, with pole-mount kits where no wall exists. Cable holsters keep bays tidy, while one-hand plug insertion and clear fault codes make the charger easy for drivers and installers.
DongYu integrates R&D, tooling, injection moulding, PCBA assembly, final assembly, and testing under one roof in Ningbo. Five production lines and 200+ employees support stable mass production across AC wallboxes, portable chargers, and DC stations — letting us hold lead times and scale volume.
Our factory runs an ISO 9001-certified quality management system, and every wallbox is engineered for CE, CB, RoHS, and TUV Mark alignment. Quality gates cover incoming components, in-line assembly, functional and safety testing, and pre-shipment inspection, with technical files prepared for your importer.
As a factory-direct OEM & ODM partner, DongYu customizes enclosure design, colour, logo, power rating, connector type, cable length, and firmware behaviour. Every change is evaluated for manufacturability and certification consistency first, so a branded wallbox still meets its market's safety and EMC requirements.
We support long-term programs with 12-month warranty coverage, free repair or spare parts for verified non-man-made faults, and bilingual engineering and sales support. Our export team arranges packaging, customs clearance, and freight, while engineers stay available through commissioning and troubleshooting.
From product appearance and hardware configurations to software functions, packaging, and branding, DongYu offers flexible OEM and ODM services that allow distributors, operators, and brands to develop wall mounted EV chargers aligned with their specific market requirements.

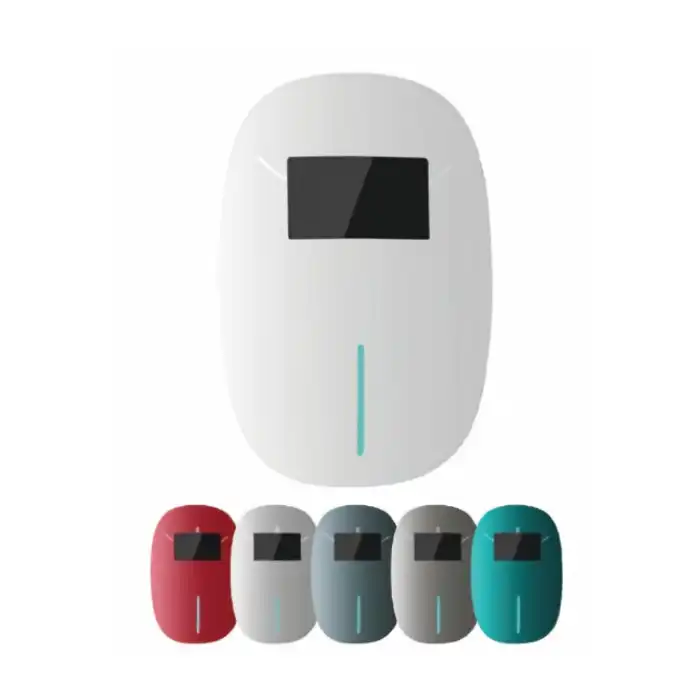

Housings can be moulded in your brand colourway with silk-screened, pad-printed, or embossed logos. We adapt faceplates, status-light styling, and enclosure geometry within existing tooling, or invest in new tooling for a proprietary design — without compromising UL94-V0 flame retardance or IP ratings.
Specify any output from 3.5kW to 22kW AC or 7kW to 40kW DC, with market-adjusted current limits and fixed or user-adjustable settings (8A–32A). Choose single- or three-phase input, integrated or detachable cable, connector standard, RFID reader, LCD, and RCD type.
Firmware can be branded, feature-gated, and localized for your market, including OCPP 1.6J backends, custom RFID cards, dynamic load balancing, tariff and scheduling logic, and your own mobile app or white-label portal — with OTA updates so deployed fleets improve remotely.
DongYu provides full private-label support: retail-ready cartons and inserts built to your artwork, barcodes and carton labelling, multilingual manuals, installation guides, and compliance documentation — plus drop-test-ready packaging for distributors and e-commerce.
Send us your target market, power range, connector standard, and customization needs
— our engineering team replies within 24 hours with a specification sheet, lead time, and factory-direct quotation.
Whether the priority is cost-effective everyday charging or higher-power applications, DongYu offers AC and DC wall mounted EV charging solutions with different performance characteristics, enabling buyers to select equipment according to site requirements, charging demand, and deployment models.
AC wallboxes from 3.5kW to 22kW are the most cost-effective way to add charging at any wall, running on standard single- or three-phase supply with minimal civil work. Flagship models combine an IP55 PC + PA66 enclosure, adjustable 8A–32A current, optional RFID/Wi-Fi/4G, and Type 1, Type 2, or GB/T output.
| Power range | 3.5 – 22 KW |
| Supply | 1-phase 230v / 3-phase 400v |
| Enclosure | IP55 · pc + PA66 · UL94-V0 |
| Current | 8a – 32a adjustable |
| Best for | Homes, offices, hotels, car parks |
Where AC is too slow but a full DC station is too large, our compact DC wallboxes deliver 7kW to 40kW on a wall footprint. The 7kW Model 7100 runs on a standard single-phase 176–264V supply — no three-phase upgrade — making DC-protocol charging practical for homes and small fleets.
| Power range | 7 – 40 kW DC |
| Supply | 176 – 264V single-phase (Model 7100) |
| Output voltage | 200 – 1000V platform |
| Connectors | CCS1 / CCS2 / GB/T / CHAdeMO |
| Best for | Homes, dealerships, small fleets |
DongYu supports different charging scenarios with wall mounted solutions across Level 2 and Level 3 categories,
helping customers match charging speed, power requirements, installation conditions, and operational needs with the appropriate charging architecture.

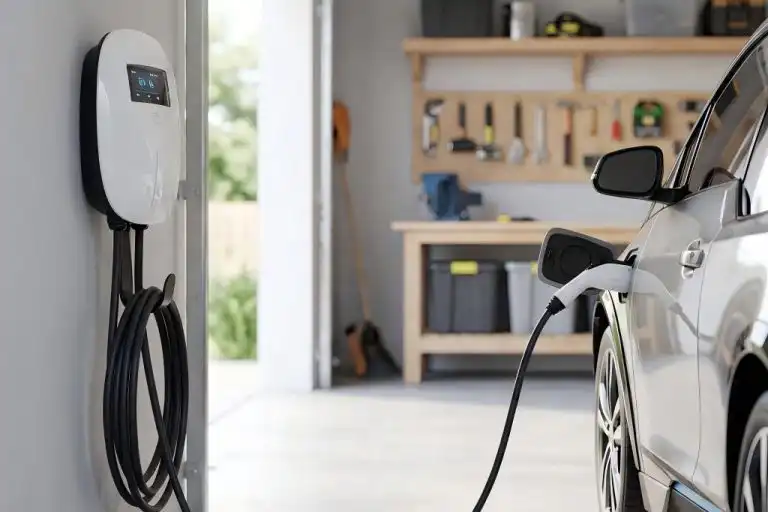

A wall mounted Level 2 EV charger is the mainstream choice for homes, workplaces, and destinations. DongYu Level 2 wallboxes deliver 3.5kW to 22kW from 208–240V single-phase or 380–400V three-phase supply, with adjustable current, all major connectors, and optional RFID, app monitoring, and 4G.
A wall mounted Level 3 EV charger delivers DC fast charging from a compact wall unit. DongYu's wall-mounted DC range starts at 7kW on single-phase supply and scales to 20–40kW three-phase, with CCS2 or GB/T connectors and IP55 protection — suiting small fleets and dealerships.
| Parameter | Wall Mounted Level 2 | Wall Mounted Level 3 |
| Charging type | AC — uses vehicle on-board charger | DC — converts power inside the unit |
| Power output | 3.5kW – 22kW | 7kW – 40kW |
| Supply | 208–240V 1-phase / 380–400V 3-phase | 176–264V single-phase to 3-phase |
| Typical range added | ~25 – 120 km per hour | Fast top-up in a short dwell window |
| Typical application | Homes, workplaces, hotels, car parks | Small fleets, dealerships, pilot sites |
With multiple power options including 7kW, 11kW, 22kW, and 20-40kW configurations, DongYu enables customers to select charging capacity based on vehicle requirements, available electrical infrastructure, installation conditions, and expected daily charging demand.
The 7kW wall mounted EV charger is our highest-volume class and the standard for single-phase homes and small businesses. Running at up to 32A on 230V, it restores roughly 40–50km of range per hour and fully recharges a typical passenger EV overnight.
230V · 1-phase
8–32A adjustable
| Range per hour | ~40–50 km |
| Best market | Single-phase homes |
The 11kW wall mounted EV charger is the sweet spot for three-phase markets such as Europe. Drawing only 16A per phase, it delivers around 60–70km of range per hour while keeping grid-connection costs low. Type 2 or GB/T output, RFID make it our most-requested EU configuration.
400V · 3-phase
16A per phase
| Range per hour | ~60–70 km |
| Best market | EU / GB/T 3 phase |
The 22kW wall mounted EV charger is the fastest AC option before stepping up to DC, delivering up to 120km of range per hour for vehicles with high-power on-board chargers. It suits high-turnover retail sites and fleet depots, as an IP55 wallbox or pole-mounted station.
400V · 3-phase
32A per phase
| Range per hour | up to 120 km |
| Best market | Commercial high-turnover |
DongYu accommodates major charging standards and connector requirements across international markets, helping B2B customers configure wall mounted EV chargers for regional vehicle compatibility, infrastructure requirements, and market-specific deployment needs.
The J1772 wall charger uses the SAE J1772 (Type 1) standard for North America, covering Level 1 and Level 2 charging up to 7.4kW on 240V. Our models use TPE cable, NEMA or hardwired input, CCID20-compliant leakage detection, and UL94-V0 housings.
Vehicle fit: most North American EVs; NACS adapters available for newer models.
The Type 2 wall charger uses IEC 62196-2, the mandated AC standard across Europe and widely adopted in Asia-Pacific. One connector supports single- and three-phase charging to 22kW, with a plug lifespan beyond 10,000 mating cycles.
Vehicle fit: the majority of European and Asia-Pacific EVs.
The GB/T wall charger complies with GB/T 20234 for China’s market: 220V single-phase up to 7kW and 380V three-phase up to 22kW, with the same smart options as our export models. Mixed-standard sites can also use Type 2-to-GB/T adapters.
Vehicle fit: China-market EVs and GB/T-adopting export markets.
The CCS wall charger brings Combined Charging System DC fast charging to a wall-mounted form factor. We offer CCS1 for North America and CCS2 for Europe and Asia-Pacific, with 200–1000V output covering both legacy 400V and new 800V vehicles.
Vehicle fit: CCS-equipped EVs across North America, Europe, and Asia-Pacific.
The CHAdeMO wall charger supports Japanese-market and LEAF-class vehicles. DongYu provides CHAdeMO in wall-mounted and pedestal DC configurations, plus multi-standard dispensers that serve CHAdeMO and CCS from one station for mixed fleets.
Vehicle fit: Nissan LEAF-class and Japanese-market EVs.
Different parking contexts create different buying criteria — dwell time, access control, power supply, and cost recovery. DongYu configures solutions for each segment.

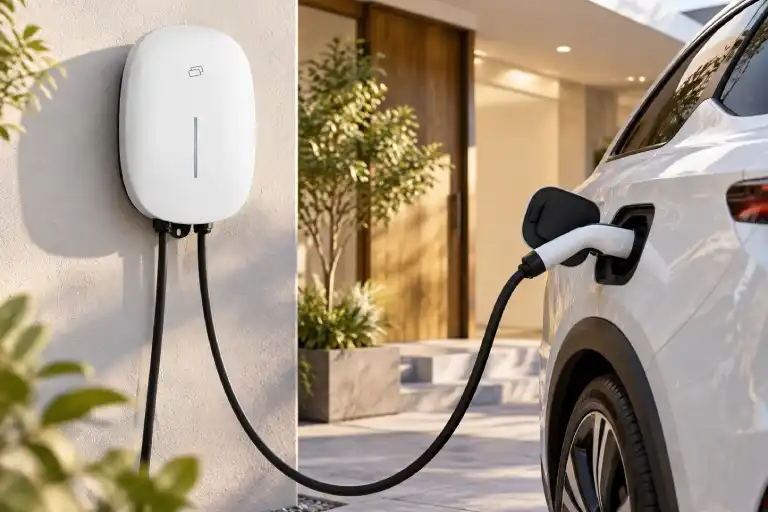

Home charging delivers most EV energy. Our residential wallboxes prioritise quiet operation, compact aesthetics, single-phase simplicity, and off-peak scheduled charging, with IP55 indoor/outdoor protection.
Commercial deployments trade simplicity for throughput, accountability, and uptime. Our wallboxes add authentication, back-office connectivity, and load management so operators can recover energy costs and grow capacity.
A wall mounted EV charger delivers electricity to the vehicle’s on-board charger through a standard connector, and the car converts that AC power to DC. DC wall-mounted units convert power internally.
Match the rating to your vehicle’s on-board charger limit and the site’s electrical supply. Choose 7kW for single-phase homes, 11kW for three-phase European and Chinese sites, and 22kW for high-turnover commercial destinations.
A wall mounted Level 2 charger is an AC unit delivering 3.5kW to 22kW that relies on the vehicle’s on-board charger. A Level 3 unit converts power internally, delivering 7kW to 40kW.
DongYu supplies Type 1 (SAE J1772), Type 2 (IEC 62196-2), and GB/T 20234 output across our AC wallboxes, plus CCS1, CCS2, and CHAdeMO on DC wall-mounted models. Cross-standard adapters handle mixed-fleet sites.
Yes. Every platform can be configured for a specific grid, connector standard, language, firmware feature set, and documentation requirement. We adapt power ratings, current limits, cable lengths, and enclosures to each market, checking certification consistency before production.
Yes. DongYu is a factory-direct OEM and ODM partner supporting logo printing, enclosure colour and design, packaging, private label, power and connector configuration, and firmware customization.
Both. Residential models prioritise compact design, IP55 indoor/outdoor protection, quiet operation, and off-peak scheduling. Commercial models add RFID or app authentication, OCPP connectivity, load management, and usage reporting.
Our chargers are engineered for CE, CB, RoHS, and TUV Mark alignment, with IP55/IP65 enclosure ratings, UL94-V0 flame-retardant materials, and IK08 impact resistance. North American configurations use CCID20-compliant leakage detection.
