7kW/11kW Wall-Mounted AC EV Charger with RFID & IP55 Protection for Home

Home » EV chargers » AC EV charger » 7kW/11kW Wall-Mounted AC EV Charger with RFID & IP55 Protection for Home
Ningbo Dongyu Electrical Appliance Co., Ltd.
7kW/11kW Wall-Mounted AC EV Charger with RFID & IP55 Protection for Home

DongYu Wall-mounted EV charger is an AC EV charger for home use, rated power of 7 ~ 11kW.It supports Type1, Type2, GBT. There are two types of mounting: wallbox and and floor-stand. The whole EV charger design is practical, and easy to install. Its high degree of protection meets the IP55 level of dustproof and water proof.

  • Support customization
  • EV Charger Level 2
  • OCPP1.6J
  • Type 2/Type 1/GBT
  • Wall-mounted Design
  • Pure Copper Cable
  • LCD screen
  • Bluetooth & Wifi&4G
  • IP55 protection
  • Swipe card support
certificates
ce certification
cb certification
rohs certification
TUV
MOQ: 50
Sample support
Fastest delivery time: 30 days
Request a quote
product catalog download

Features of our Wall-Mounted AC EV charger

Our wall-mounted AC EV charger supports 7kW/11kW charging power for reliable daily EV charging. With IP55 protection, RFID access control, Bluetooth, WiFi and 4G connectivity, it supports Type 1, Type 2, GB/T  standards, with multiple safety protections for secure and stable charging.

Compact Design and IP55 Outdoor Protection

IP55 weather resistance supports reliable indoor and outdoor use. Its compact 12.20 × 8.27 × 3.54-inch size and lightweight 3.2kg design simplify installation in garages, parking lots, and outdoor charging areas.

Fast and Efficient AC Charging Performance

Available in 7kW and 11kW AC charging power, providing a reliable charging solution for daily EV use. Perfectly designed for homes, apartments, workplaces, and private charging stations.

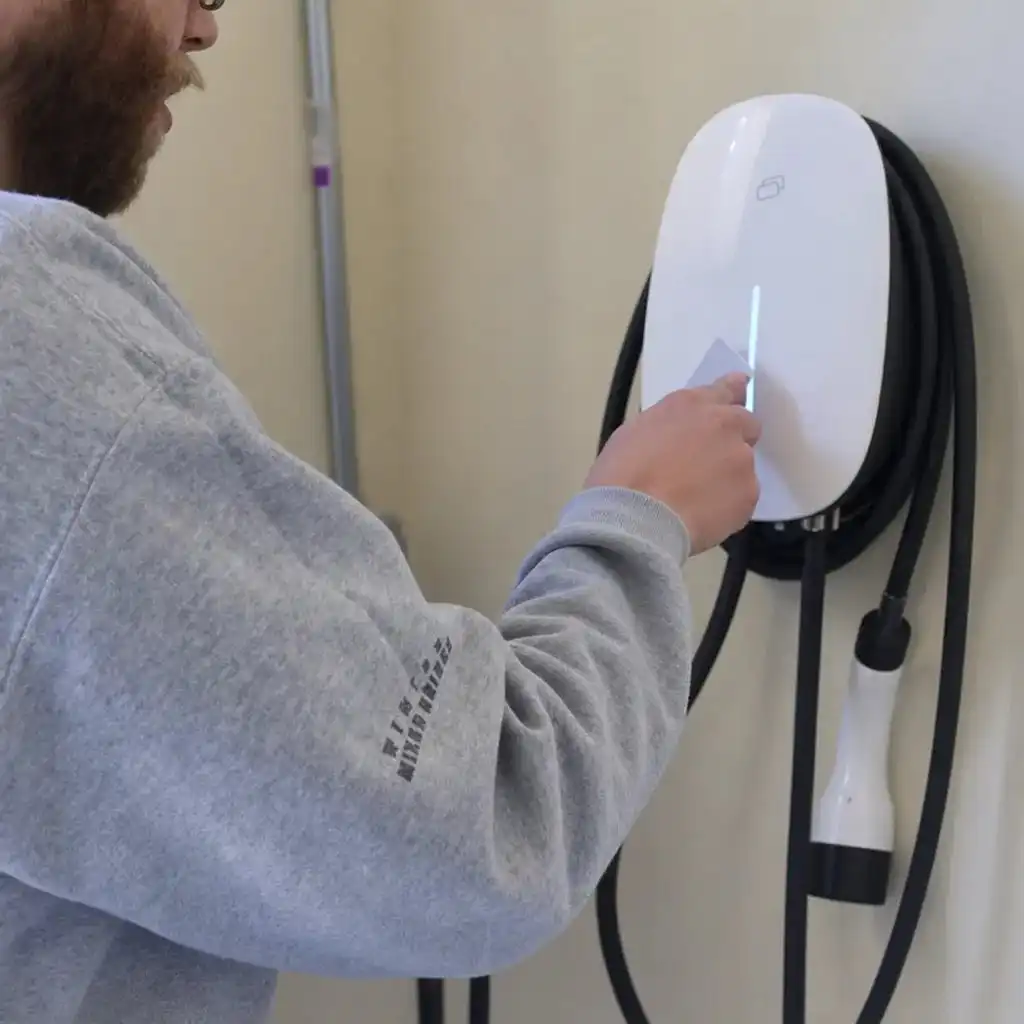

RFID Card Access Control for Secure Charging

Equipped with RFID card authentication technology, this EV car charging station allows authorized users to start charging safely and provides secure access control for residential and commercial applications.

Smart Connectivity with Bluetooth, WiFi & 4G

The level 2 ev charger supports Bluetooth, WiFi, and 4G connectivity, enabling remote monitoring, intelligent control, and convenient charging management for both residential and commercial applications.

Multiple Safety Protection Systems

Safety protection includes overload, ground, over/under voltage, over-temperature, and leakage protection for safe and stable charging.

Multi-Standard Charging Compatibility

Supports Type 1, Type 2, GB/T charging standards for global EV applications.

shu

product specifications

Powersupport phase EU/gbt:single PHASE1P+n+pe am:single phase 2p+(n)+pe EU/gbt : three phase/3p+n+pe)
Output power 7.4kw(max) 11kw(max)
Output voltage EU 230v/gbt 220v/am 240v EU 400v/gbt 380v
Maximum current 32a 16a
Ingress protection IP55 controller box
Fire grade UL94-V0
Rcd CCID20(UL)/AC 30ma-DC6mA (en/gbt)
Electric plug (to electricity) Cable to electricity directly
Output connector (to car) EU series :tpu cable+EU type2 plug am series: tpe cable + am type1 plug GB/t series: tpe cable+gbt type plug
Cable length 5m
Material Pc + PA66
Display of charger status LED light BAR or LCD displayer
Charge model Plug in and charge
Protection Over load protection; ground protection; over/under voltage protection; over temperature protection;leakage protection;
Installation Wall mounted/pole-mounted（optional）
Optional LCD screen; bluetooth&wifi ; swipe card ;4g

why choose DongYu as your Wall-Mounted AC charger manufacturer

OEM/ODM Manufacturing Capability

Backed by 5 production lines and an experienced R&D team, we provide flexible OEM/ODM solutions with reliable mass production.

Certified Quality Assurance

Strict quality control and CE, CB, RoHS and TUV Mark certifications ensure reliable, safe and European-standard EV charging products.

Comprehensive After-sale Guarantee

Enjoy a 12-month warranty, responsive bilingual support, spare parts service and one-stop logistics for worry-free global cooperation.
