As a professional portable EV charger manufacturer and supplier, Dongyu offers a comprehensive range of AC portable EV chargers with flexible power ratings, connector options, and configurations for importers, distributor brands, fleet operators and EV service businesses worldwide.
The main unit weighs about 3 kg and measures roughly 230 × 100 × 50 mm, small enough to live permanently in the boot. A detachable input cable keeps storage tidy and lets users swap plugs between regions.
Because the charge gun is interchangeable, one charger platform covers almost every EV on the road: Type 1 (J1772), Type 2 (IEC 62196-2), GB/T. OCPP 1.6J compatibility keeps smart models ready for network integration.
Output spans 1.75 kW, 3.5 kW, 7 kW, 11 kW and 22 kW, in single-phase and three-phase versions. Adjustable current lets a user trade charging speed for the capacity of whatever socket is available.
There is no installation and no electrician. Plug the input cable into a household or industrial socket, connect the gun to the car and charging starts automatically — the same logic works in a garage, a hotel parking lot, or at a construction site.
The controller box carries IP65 (IP55 on selected models) plus a UL94-V0 flame rating. Housings use PC + PA66 with pure-copper TPE or TPU cable, tested from −40 °C to +50 °C against rain, dust, heat and frost.
Protection covers overload, ground fault, over- and under-voltage, over-temperature and leakage. An integrated RCD (CCID20 for UL markets, AC 30 mA + DC 6 mA for EN/GB-T) works with insulation resistance above 1000 MΩ and contact resistance below 0.5 Ω.
| Parameter | Single Phase Portable EV Charger | Three Phase Portable EV Charger |
| Rated input voltage | EU 230 V / GB-T 220 V / AM 120 V–240 V | EU 400 V / GB-T 380 V |
| Output power | 1.75 kW / 3.5 kW / 7 kW (7.4 kW max) | 11 kW / 22 kW |
| Maximum current | 16 A adjustable / 32 A adjustable | 16 A / 32 A |
| Current steps | 8 A · 10 A · 13 A · 16 A · 32 A | 16 A · 32 A |
| Ingress protection | IP65 controller box | IP55 / IP65 controller box |
| Flame rating | UL94-V0 | UL94-V0 |
| Insulation resistance | > 1000 MΩ (DC 500 V) | > 1000 MΩ (DC 500 V) |
| RCD | CCID20 (UL) / AC 30 mA + DC 6 mA (EN / GB-T) | AC 30 mA + DC 6 mA (EN / GB-T) |
| Contact resistance | < 0.5 Ω | < 0.5 Ω |
| Input plug | NEMA 5-15P / 5-20P / 6-20P, NEMA 14-50P, EU 16 A Schuko, GB/T three-pin, 32 A single-phase CEE | EU & GB/T 16 A / 32 A three-phase CEE plug |
| Output connector | Type 1 / Type 2 / GB/T / CHAdeMO | Type 1 / Type 2 / GB/T / CHAdeMO |
| Cable | Pure-copper TPE / TPU, 5 m standard | Pure-copper TPE / TPU, 5 m standard |
| Enclosure material | PC + PA66 | PC + PA66 |
| Status display | LED light bar or LCD display | LED light bar or LCD display |
| Charge mode | Plug in and charge | Plug in and charge |
| Protection | Overload · ground · over/under voltage · over-temperature · leakage | |
| Operating temperature | −40 °C to +50 °C | |
| Optional modules | LCD screen · Bluetooth & Wi-Fi · 4G · RFID swipe card · OCPP 1.6J | |
| Certification | CE · CB · RoHS · TUV Mark · IATF 16949 manufacturing | |
| Set includes | 1 × controller box with gun-head cable (integrated or detachable) + 1 × input cable (Schuko / 16 A single-phase / CEE plug) | |
In-house injection, SMT assembly, cable processing and final testing sit under one roof. Every unit passes a 100% function test, hi-pot check and aging burn-in before packing.
With five assembly lines and an annual output of 300,000 units, we ensure consistent performance even during peak seasons. Critical parts are stocked in-house, so upstream shortages never become your missed launch date.
Chargers are engineered to the standards your market enforces — CE and UKCA, FCC with UL-related safety, RCM — with RoHS and REACH materials. Test reports and declarations ship with every order.
We provide technical support in English and guarantee a response within one business day. We supply wiring diagrams, fault code guides, firmware documentation, and back our products with a 1-year after-sales warranty.
Dongyu provides flexible OEM and ODM portable EV charger solutions, allowing brands, distributors, and importers
to customize charging specifications, connectors, user interfaces, packaging, and branding for different markets.

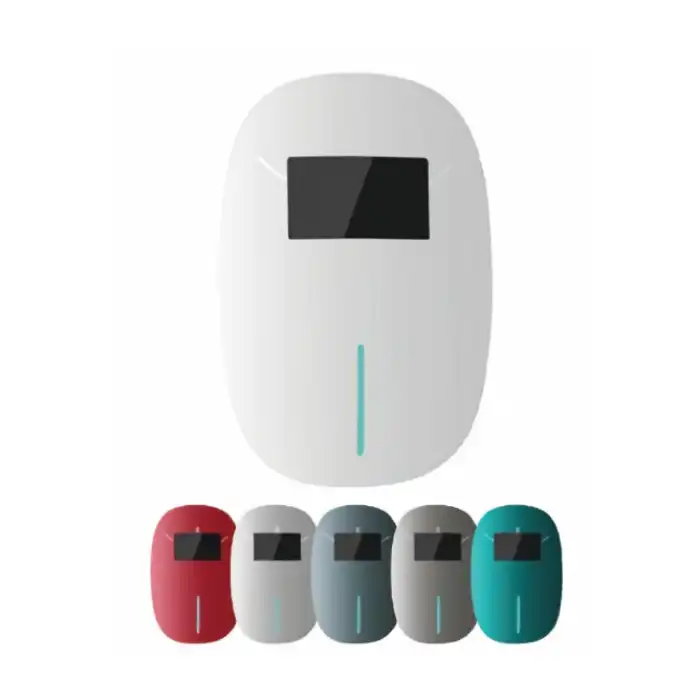

Add your logo to the housing, cap, start-up screen and packaging — or go further with custom colors, model naming, localized manuals and a private mold no other buyer can offer.

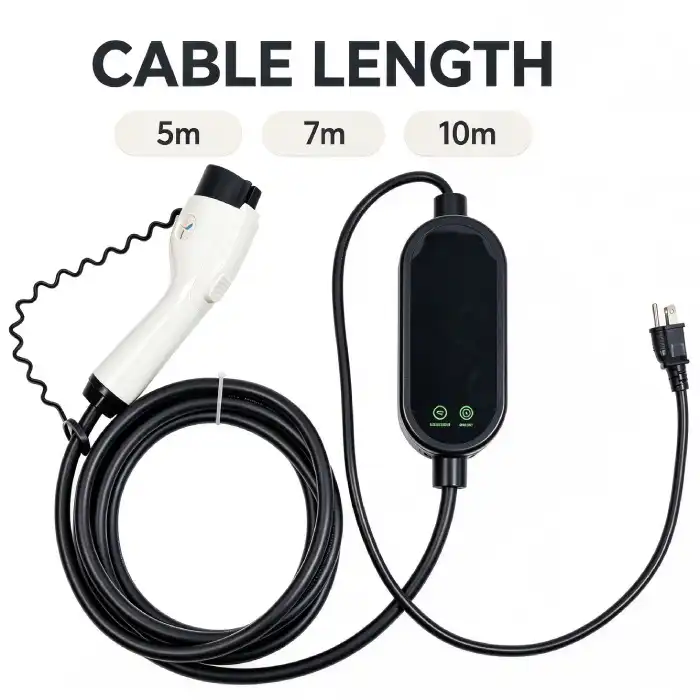

Choose 3.5 kW single-phase to 22 kW three-phase, 16 A or 32 A, with adjustable current for limited supplies. Cables come in 5 m, 7 m or 10 m, straight or coiled.

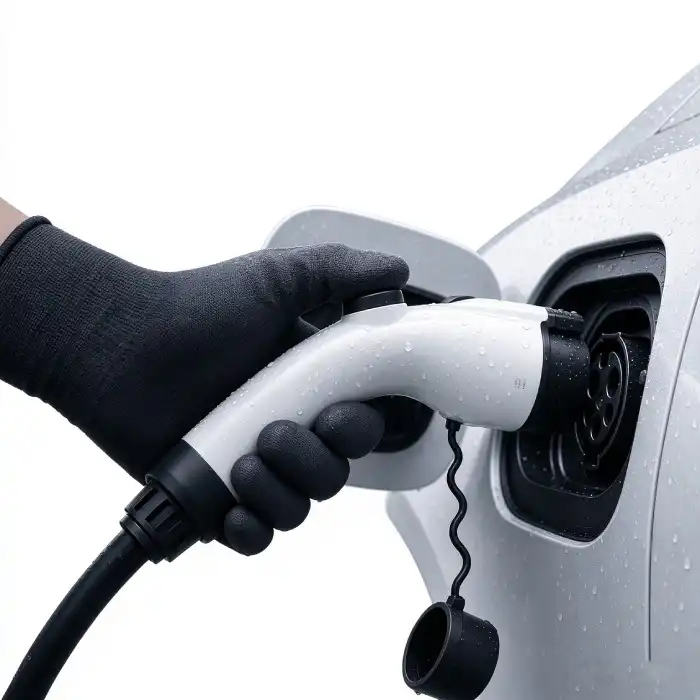

Type 1, Type 2, NACS and GB/T connectors with silver-plated contacts, temperature sensing and a flexible TPU jacket. Customize the color, grip, cap and strain relief — or send us your drawings.

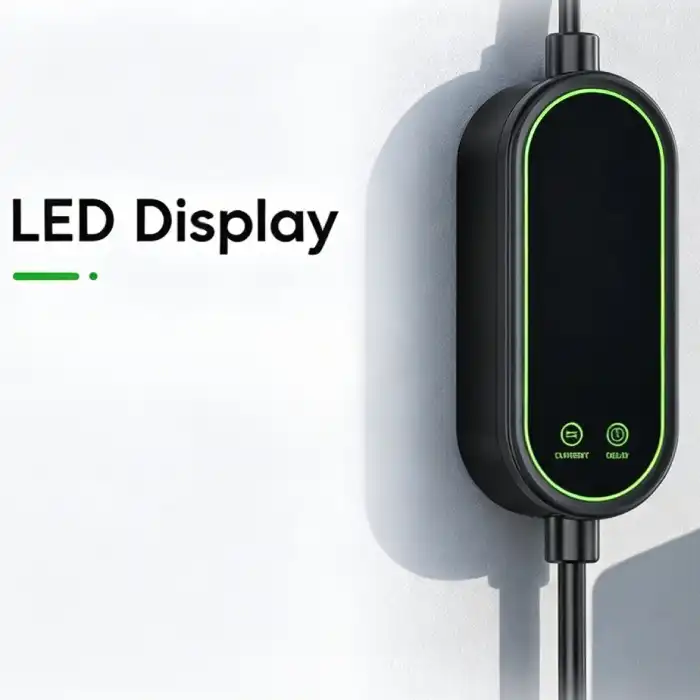

Pick an LED panel, segmented LCD or full graphic display showing current, power, session energy and fault codes, with your logo on start-up. Menu language is localized per market.
Send us your target power rating, connector standard, input plug and order volume —
our engineering team will return a quotation, a sample plan and a 30-day delivery schedule.
Choose the appropriate portable EV charging solution based on charging requirements,
electrical conditions, and application scenarios, with Dongyu offering Level 1 and Level 2 AC charging options.

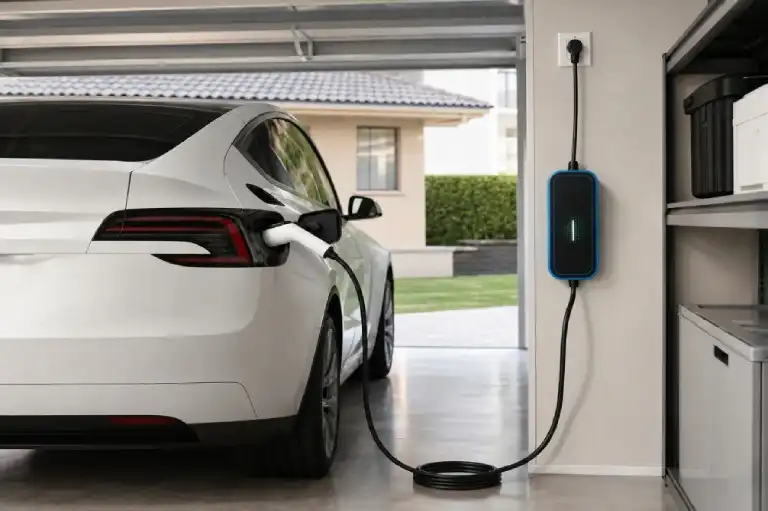

A Level 1 portable EV charger runs on a standard household socket — 120 V in North America, drawing 16 A and delivering up to 1.75 kW. It needs no dedicated circuit, which makes it the default choice for overnight charging at home, in rented accommodation or at any destination where only a wall outlet is available. Adding roughly 8–12 km of range per hour, it is the cheapest way to keep an EV topped up without a single electrical upgrade.

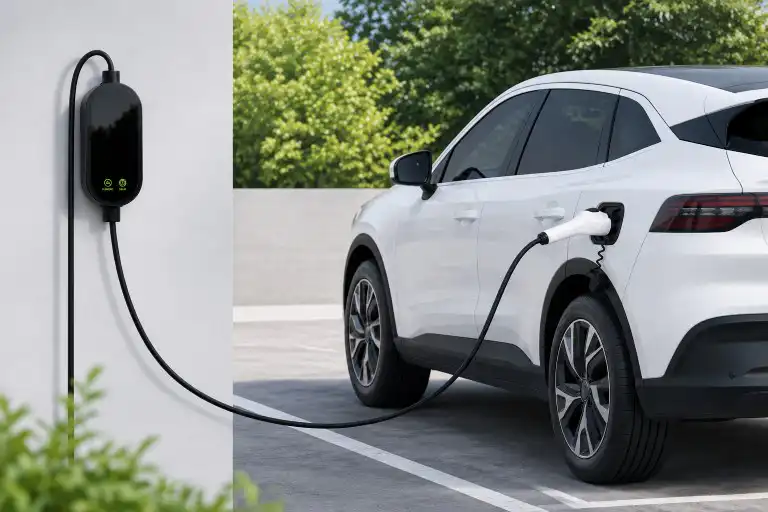

A Level 2 portable EV charger uses 230 V single-phase or 400 V three-phase supply to deliver 3.5 kW, 7 kW, 11 kW or 22 kW through a 16 A or 32 A circuit. Charging five to ten times faster than Level 1, it suits daily drivers, commercial fleets and roadside assistance vehicles that need meaningful range within a single working shift. Our Level 2 units keep the portable form factor — 3 kg, 5 m cable, plug-in operation — while adding LCD status, adjustable current and delayed charging.
| Output | Voltage | Current | Speed | |
| level 1 | 1.75 kW max | 120 V AC | 16 A | 8–12 km / h |
| level 2 | 3.5 – 22 kW | 230 V / 400 V | 16 A / 32 A | 15–80 km / h |
Choosing a power rating is a question of matching the charger to the socket, the building wiring and the vehicle’s onboard charger. Never exceed the rating of the outlet you intend to use. From compact 1.75 kW charging to powerful 22 kW solutions, Dongyu offers multiple power configurations to meet different vehicle requirements, electrical systems, markets, and charging applications.
Selling into multiple regions means stocking multiple connector standards.
Dongyu builds portable EV chargers on Type 1, Type 2 and GB/T platforms, and can mix connector, input plug and cable specification within a single order.
Type 1 (SAE J1772) is the five-pin single-phase connector used across North America and Japan. Dongyu Type 1 portable chargers pair a TPE cable and Type 1 gun with NEMA 5-15P, 6-20P or 14-50P input plugs, rated 16 A at 120 V or 32 A at 240 V.
Type 2 (IEC 62196-2, also known as Mennekes) is the European standard. Available in single-phase 230 V and three-phase 400 V versions, our Type 2 portable chargers support 16 A and 32 A operation and pair with Schuko or single/three-phase CEE plugs.
GB/T is the Chinese national standard, operating at 220 V single phase or 380 V three phase. GB/T portable chargers ship with a three-pin or CEE input plug and are supplied to domestic fleets as well as export markets that import Chinese-built EVs.
A portable charger earns its place wherever the socket is uncertain. Dongyu supplies both private owners and commercial operators, and the same platform adapts to both.
For private owners, tenants and rental guests, portability removes the biggest barrier to EV ownership: reliable access to a charge point.
Fleets, service providers, dealers and event operators need charging that can be relocated at short notice.
A portable EV charger is a compact charging unit that plugs into an existing socket instead of being hard-wired to a wall. It converts AC mains power into a controlled supply for the vehicle’s onboard charger; the car itself manages the battery. Connection is plug-and-play, with safety monitoring handled inside the controller box.
Match the charger to the socket and the vehicle. A standard 120 V outlet supports 1.75 kW; a 230 V household socket supports 3.5 kW; a 32 A circuit supports 7 kW; three-phase supplies unlock 11 kW and 22 kW. Always stay within the rating of the socket and its wiring.
Level 1 uses a standard household supply — typically 120 V / 16 A and up to 1.75 kW — so it needs no dedicated circuit but charges slowly. Level 2 uses 230 V or 400 V supply to deliver 3.5 kW to 22 kW, giving five to ten times the speed while keeping the portable, plug-in format.
North America and Japan use Type 1 (J1772); Europe uses Type 2; China uses GB/T. If you sell across regions, one controller platform can be ordered with different gun heads and input plugs shipment by shipment.
Yes. OEM work covers logo printing on housing and labels, custom housing colour, branded packaging and manuals. ODM work extends further into power rating, plug and connector type, cable length, display options, enclosure design and user-interface behaviour.
Typical customisation includes 1.75–22 kW power selection, Type 1 / Type 2 / GB/T / CHAdeMO guns, NEMA, Schuko or CEE input plugs, 5 m or bespoke cable lengths, LCD or LED-bar display, and optional Bluetooth, Wi-Fi, 4G, RFID swipe card and OCPP 1.6J networking.
Portable chargers are supplied with CE, CB, RoHS and TUV Mark certification, IP65 or IP55 ingress protection and a UL94-V0 flame rating. Smart versions are OCPP 1.6J compatible, and manufacturing runs under ISO 9001 quality management with full inspection records.
