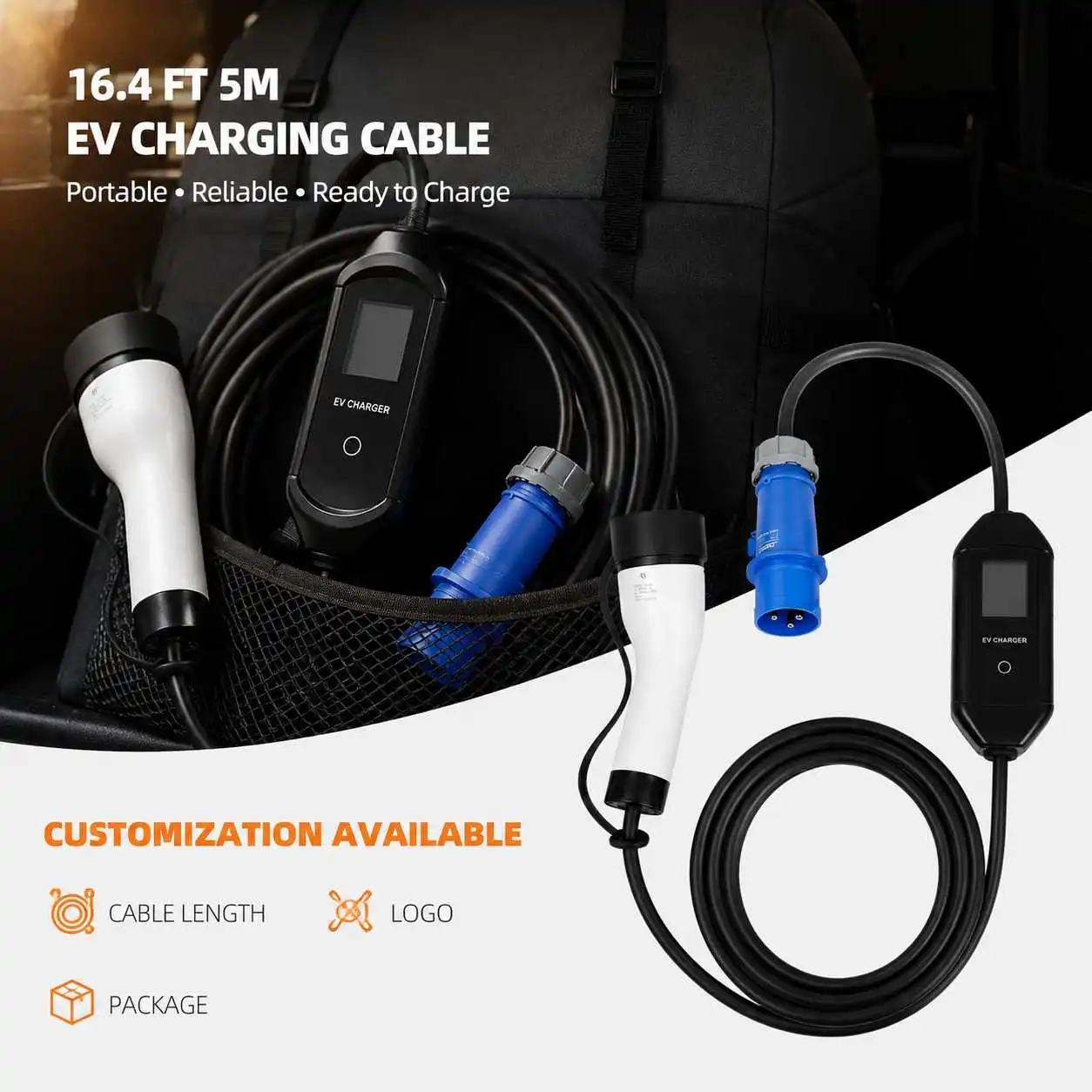

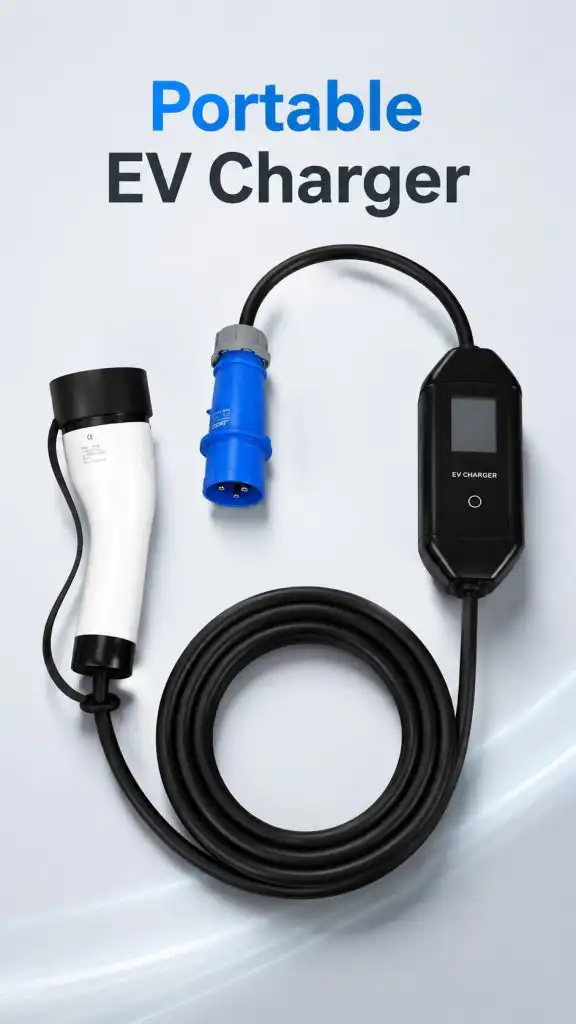

3.5kW 7kW Portable IP65 Level 2 AC EV Charger for Home
This portable EV charger provides robust, safe charging for travel use. Available in 3.5kW and 7kW power options, this versatile portable EV charging system delivers stable performance across multiple scenarios, reflecting premium quality from a professional Chinese ev charging station manufacturer.
- Support customization
- EV Charger Level 2
- OCPP1.6J

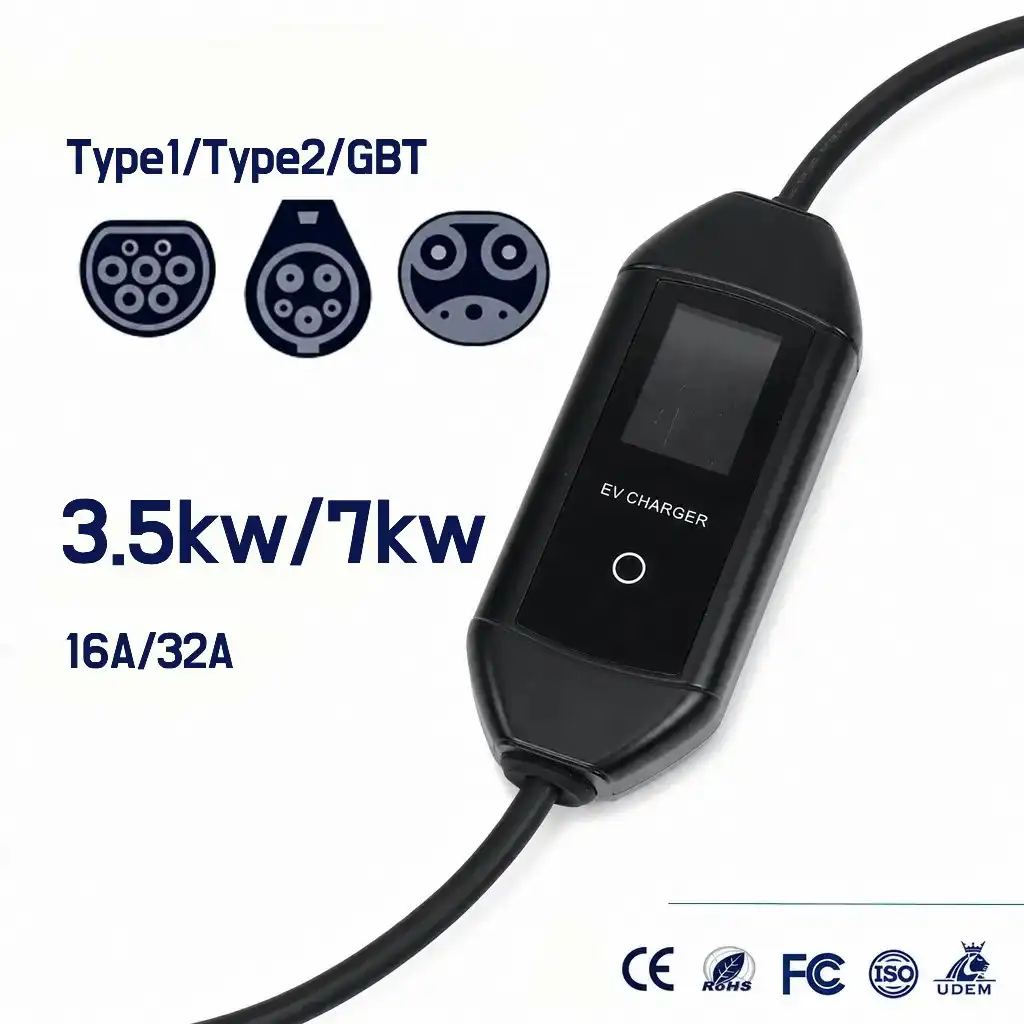

- Type 2 / Type 1 / GB/T
- Adjustable current
- Pure Copper Cable
- LCD screen
- Bluetooth & Wifi&4G
- IP65 protection
- Swipe card support
Features of our portable AC EV charger
Our portable Level 2 EV charger supports 3.5kW/7kW output with adjustable current for efficient charging. Compatible with Type 1, Type 2, GB/T connectors, it features a lightweight 3kg design, multiple safety protections, touch-key controls and delayed charging, with CE, CB, RoHS, TUV Mark, OCPP 1.6 and IP65 certifications for reliable performance.
Efficient Portable Level 2 EV Charger
Features Level 2 EV charging with 3.5 kW / 7 kW power modes and customizable current settings, maximizing charging velocity and energy efficiency.
High Compatibility
Compatible with various electric car models, available with Type 1, Type 2, GB/T charging connectors for flexible charging.
Ultra-Lightweight Design
This ac ev charger is only 3 kg and has a small size: about 230(L) × 100(W) × 50(H) mm. You can easily put it in your car trunk, and it does not take much room.
Full Protection
Our home AC EV charger provides overload, ground, over & under voltage, over temperature and leakage protection for safe, stable charging.
Multiple Professional Certifications
Fully certified with CE, CB, RoHS, TUV Mark, OCPP 1.6, IP65 and other relevant professional certifications.
Flexible Operation
Touch‑key operation enables adjustment of charging current and delayed charging settings for greater convenience.
product specifications
Our portable Level‑2 EV charger can run at 3.5 kW or 7 kW, with adjustable current, and works for home, commercial and mobile charging.
current adjustment
Our portable Level 2 EV charger supports 3.5kW/7kW output with adjustable current for home, commercial and mobile charging.
Access the Settings Mode:
Hold down the SET key for five seconds, and the ev charger will switch into the current‑adjustment mode.
Change the Current Gear:
Tap the button briefly to step through the available current settings in order: 8 A → 10 A → 13 A → 16 A → 32 A.
Confirm the Setting:
Press and hold the SET button for 5 seconds again, and the level 2 ev charger will instantly lock in the selected current value.
Begin Charging:
After you set the current, start charging by pressing the start button or just plug the car in and it will begin automatically.
delay charging
Scheduled Charging Time Settings (Delay)
Access Scheduled‑Time Mode:
Press and hold the button for five seconds; the ev charger will switch to the delayed‑charging (schedule) setting screen.
Select a Delay Interval:
Press and hold the button briefly, then tap it repeatedly to step through the available delay times in order:0 h → 2 h → 4 h → 6 h → 8 h.
Confirm the Delay:
Press and hold the button for 5 seconds once more, and the electric car charger will instantly lock in the selected delay time.
Reservation Takes Effect:
After you finish the setting, plug the vehicle in. When the charger detects a valid connection, it will wait the programmed delay and then begin charging automatically.
why choose DongYu as your portable AC charger manufacturer
OEM/ODM Manufacturing Capability
Backed by 5 production lines and an experienced R&D team, we provide flexible OEM/ODM solutions with reliable mass production.
Certified Quality Assurance
Strict quality control and CE, CB, RoHS and TUV Mark certifications ensure reliable, safe and European-standard EV charging products.
Comprehensive After-sale Guarantee
Enjoy a 12-month warranty, responsive bilingual support, spare parts service and one-stop logistics for worry-free global cooperation.
Get in touch anytime to explore our EV charging solutions.
